Porcelain Decking
Flat Roof System

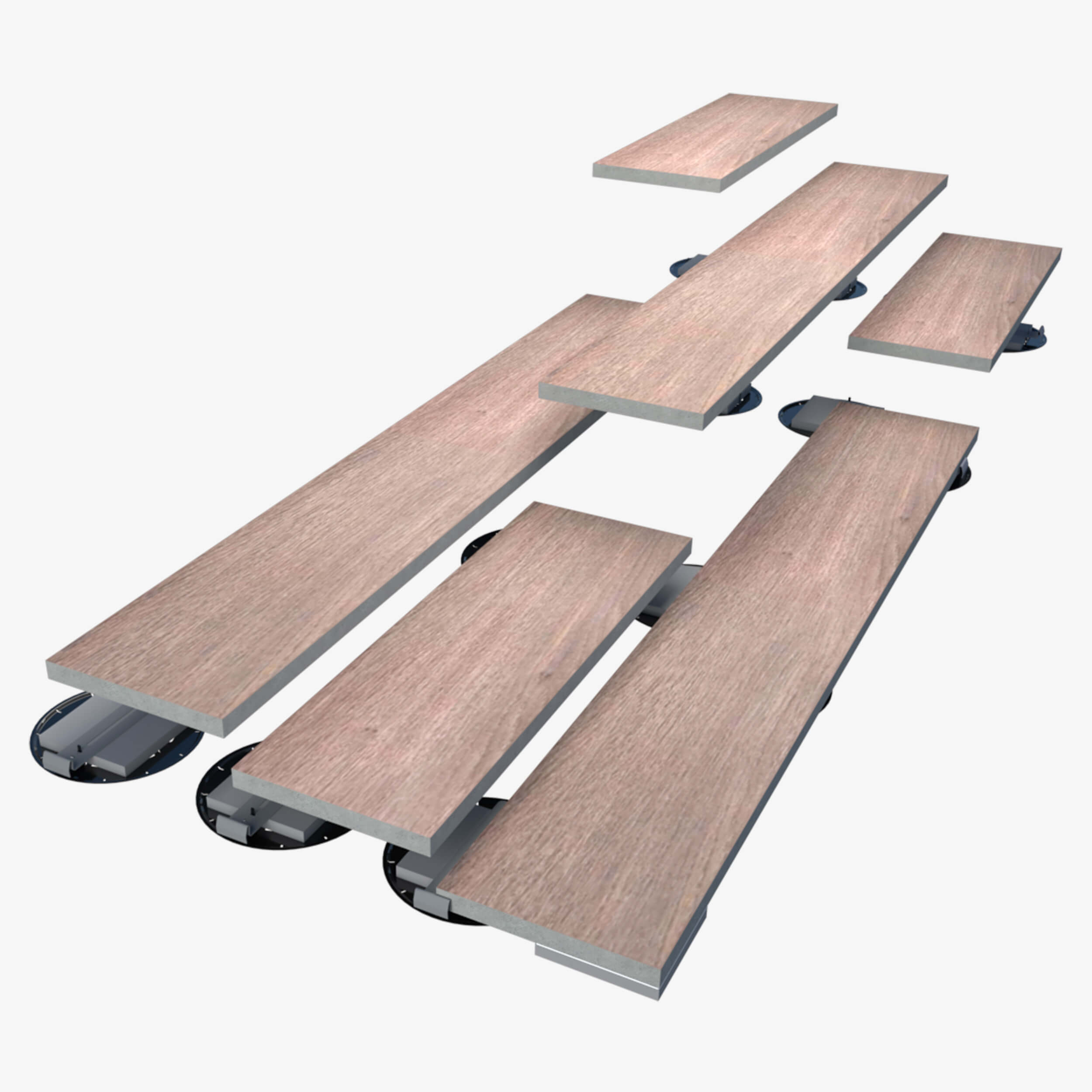

Porcelain paving system for flat roof installations. Pedestals provide quick and easy height adjustment, with membranes for roof protection.
Fast and secure installation with uniform positioning
Designed to meet the needs of a wide variety of both commercial and residential spaces this non-combustible fire rated system uses gaskets with adjustable steel pedestals and slip-proof rubber membranes to provide security, strength & adaptability where it is needed most. Paving spacer gaskets and edge bars ensure perfect spacing between slabs and at the perimeter.
Maple
Birch
Ash
Fire Resistant to EN 13501-1
A1 certified porcelain
Variable Height
25 mm minimum height
A Range of Looks
Selection of wood and stone finishes available
Suitable for Commercial Areas
Made for recessed balconies & terraces
Easily adjustable heights for creating flat systems
The cradles of MESA Pedestals can simply be rotated to adjust their heights, meaning installation on uneven or sloping surfaces can be done with minimal effort. Paving gaskets can simply be placed onto the pedestal head for use as spacers between slabs.
Technical Specification
Property | Attribute |
---|---|
Size | 1200 x 200 or 1200 x 400 mm |
Profile | 20 mm |
Slip Rating | R11 |
Reaction to fire | A1 |
Warranty | 10 year structural warranty |
Material | Porcelain |
Finish | Lithographic wood |
